Polyester fibre acoustic panel

ECOCORE PET Acoustic Panels

Noise can significantly impact comfort, productivity, and overall user experience within a space. Whether it's a busy office, educational facility, hospitality venue, or collaborative workspace, effective acoustic treatment is essential for creating environments that support focus and communication.

Tranquil ECOCORE PET Acoustic Panels are designed to address these challenges by combining acoustic efficiency with modern design flexibility. Manufactured from 100% recycled PET polyester fibers, these PET polyester acoustic panels offer an environmentally conscious solution for controlling unwanted noise while enhancing interior aesthetics.

Available in a variety of colors, textures, and customized designs, ECOCORE panels allow architects and designers to create visually appealing spaces without compromising acoustic performance. Their versatility, durability, and sustainable composition make them a preferred choice for contemporary interior environments.

How Do they Work?

In enclosed spaces, sound waves continuously reflect off hard surfaces such as walls, ceilings, glass, and flooring. These reflections can create excessive echo, reverberation, and background noise, making communication difficult and reducing overall acoustic comfort.

A polyester acoustic board is designed to absorb these unwanted sound reflections. Its specially engineered fiber structure captures sound energy as it passes through the panel, reducing the amount of noise that bounces back into the room.

By minimizing sound reflections, polyester acoustic solutions help create clearer conversations, improved concentration, and a more comfortable indoor environment. This makes them an effective choice for spaces where both acoustic performance and occupant well-being are important.

Tranquil ECOCORE PET Acoustic Panels are engineered for performance, durability, and design flexibility.

Specification

Maximum Dimensions: 2.44m x 1.22m / 2.74m x 1.22m
Thickness: 9mm, 12mm & 25mm (Customizable)
Composition: 100% PET Polyester Fiber
Mounting Methods: Adhesive Fixing with or without Air Gap
Fire Rating: Class A & Class B as per ASTM E-84
NRC Rating: Up to 0.90
Warranty: 2 Years Against Manufacturing Defects
Density Kg/m3 (+/- 10%): 9mm: 200 Kg/m³, 12mm: 190 Kg/m³, 25mm
Edges : Square/Bevelled/Mitre/Radius
Customization : Printed, Perforated, Grooved, Carved, Embossed Designs
Colors Available : 148 Color Options

NRC Performance (Without Gap) - 9mm

FREQUENCY	125	250	500	1000	2000	4000	NRC
NRC Performance (Without Gap) - 9mm	0.01	0.04	0.12	0.33	0.62	0.76	0.3

NRC Performance (Without Gap) - 12 mm

FREQUENCY	125	250	500	1000	2000	4000	NRC
Noise Reduction Coefficient (NRC)	0.03	0.06	0.22	0.48	0.74	0.8	0.4

NRC Performance (Without Gap) - 25 mm

FREQUENCY	125	250	500	1000	2000	4000	NRC
Noise Reduction Coefficient (NRC)	0.09	0.27	0.65	0.97	0.92	0.87	0.7

Types of PET Acoustic Panels

Understanding acoustic systems begins with recognizing the role of acoustic panel material and acoustic materials in interior sound control. These products are categorized based on application and performance needs.

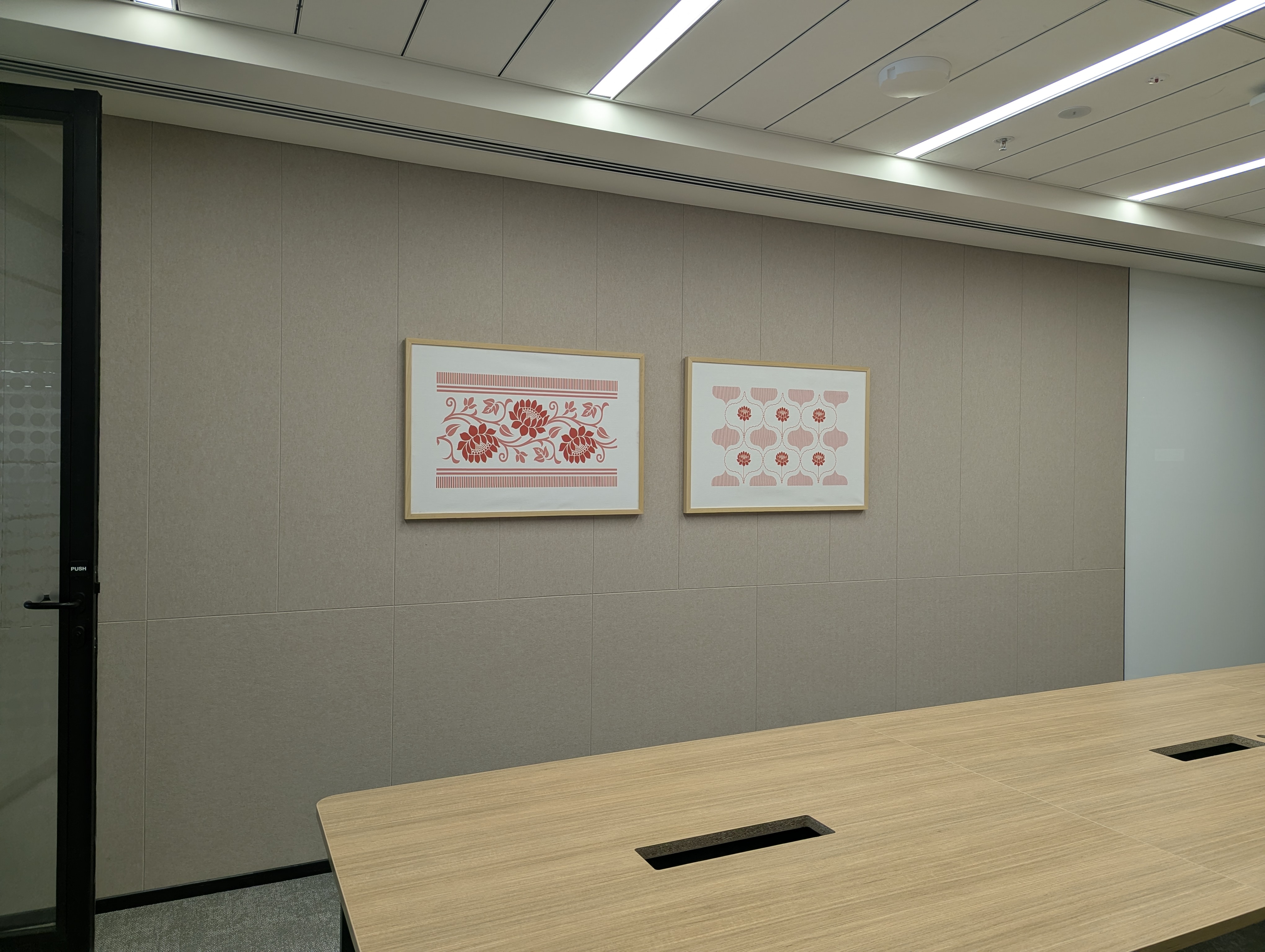

ECOCORE Plain Panels

Simple, elegant, and highly versatile, ECOCORE Plain Panels offer effective sound absorption while maintaining a clean and contemporary appearance. These PET acoustic panels are ideal for offices, classrooms, meeting rooms, and commercial interiors where minimalistic design is preferred.
Key Benefits:
1. Smooth and modern finish
2. Available in multiple thicknesses and colors
3. Easy installation and maintenance

ECOCORE Perforated Panels

ECOCORE Perforated Panels combine functionality with architectural expression. Designed with precision perforation holes, these acoustic PET panels enhance sound absorption while adding texture and visual depth to walls and partitions. Key Benefits:
1. Contemporary decorative appearance
2. Suitable for feature walls and space dividers
3. Available in various perforation patterns

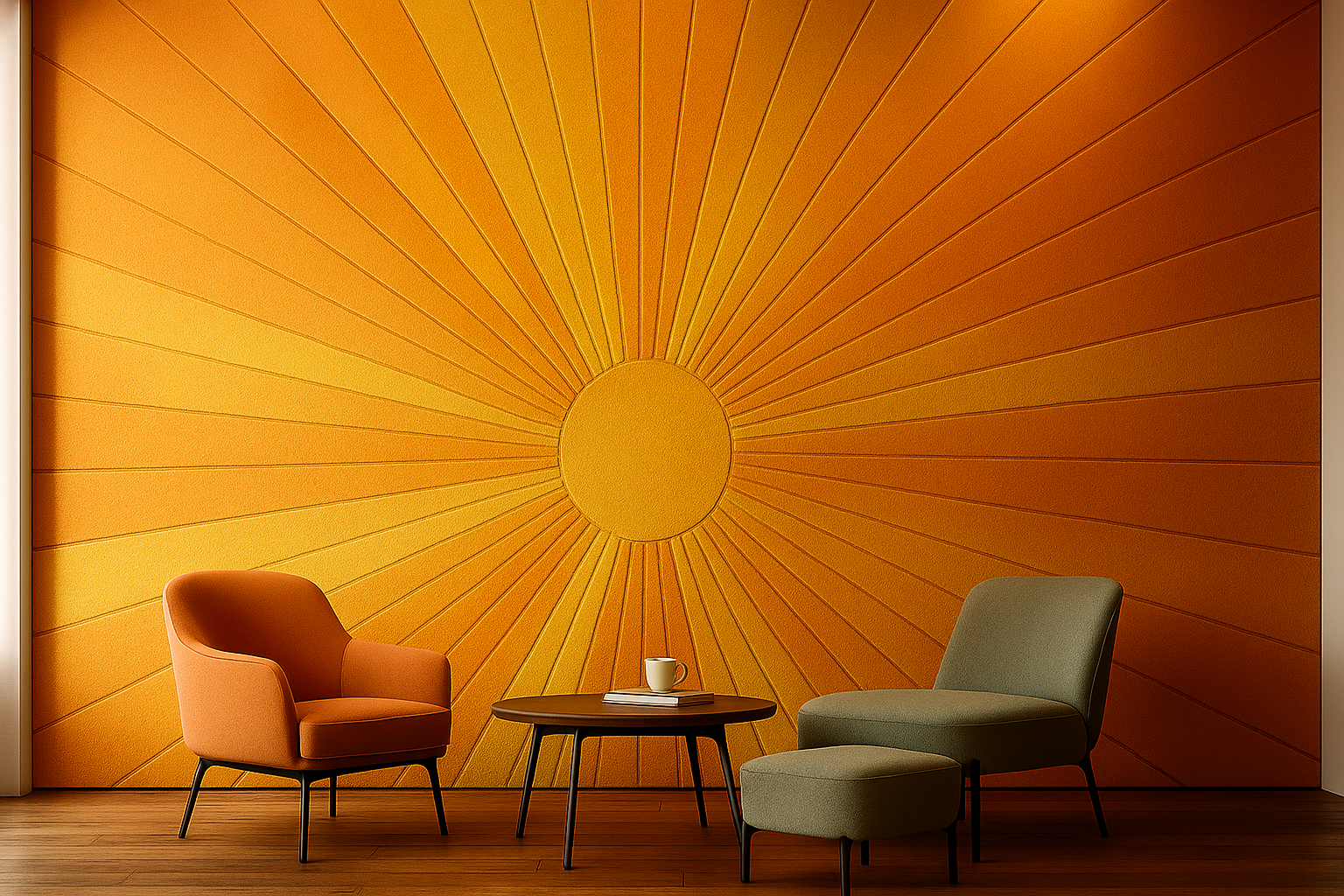

ECOCORE Printed Panels

Bring creativity into acoustic design with ECOCORE Printed Panels. These PET panels acoustic solutions allow custom graphics, branding elements, artwork, and patterns to be integrated directly into the acoustic treatment. Key Benefits:
1. Customizable graphics and artwork
2. Acoustic performance with visual impact
3. Available in multiple panel sizes and thicknesses

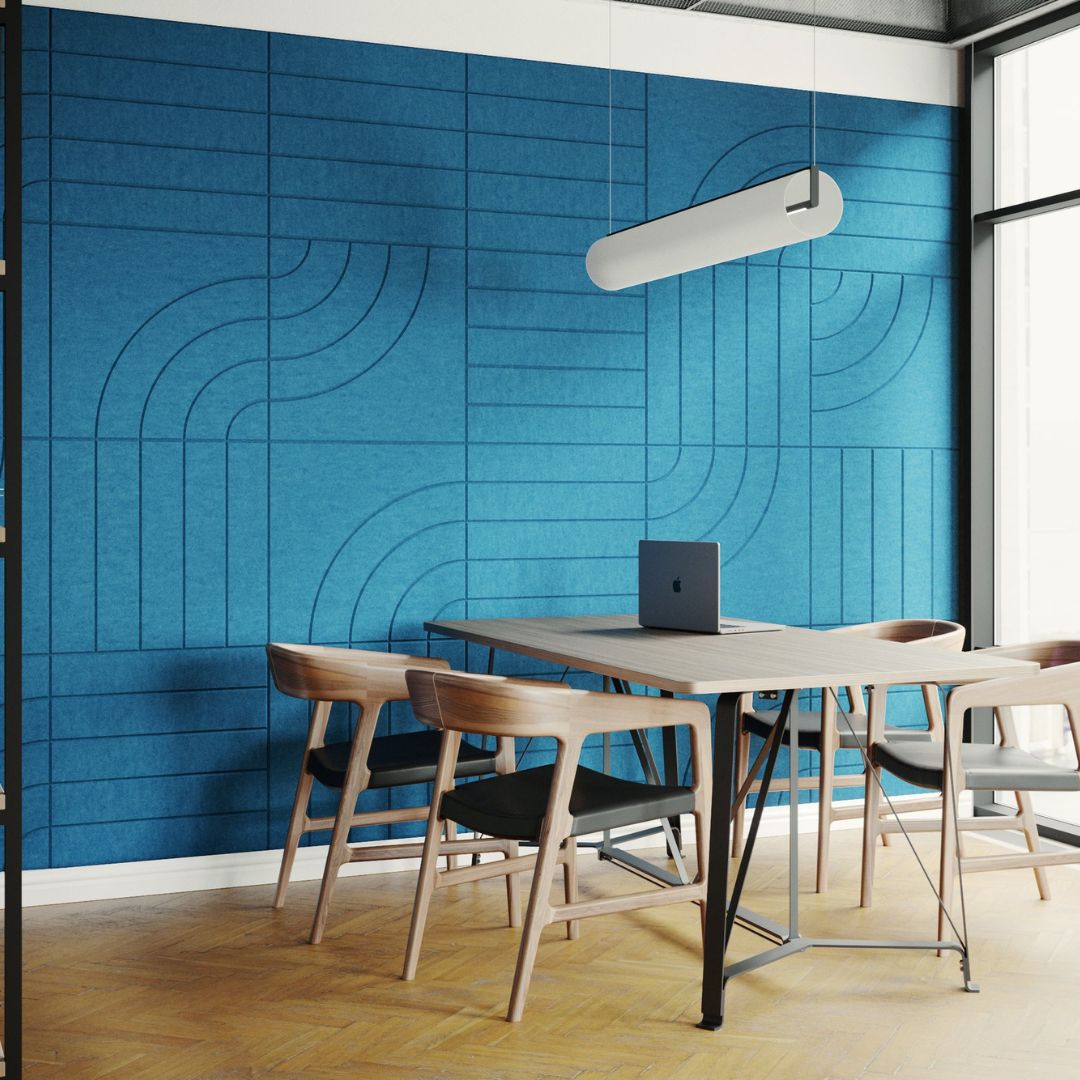

ECOCORE Grooved Panels

Featuring elegant V-groove patterns, ECOCORE Grooved Panels create dimensional surfaces that elevate interior aesthetics while maintaining superior acoustic control. These PET acoustic panels are ideal for modern commercial environments seeking both performance and design appeal. Key Benefits:
1. Distinctive geometric patterns
2. Enhanced visual depth
3. Wide range of groove designs available

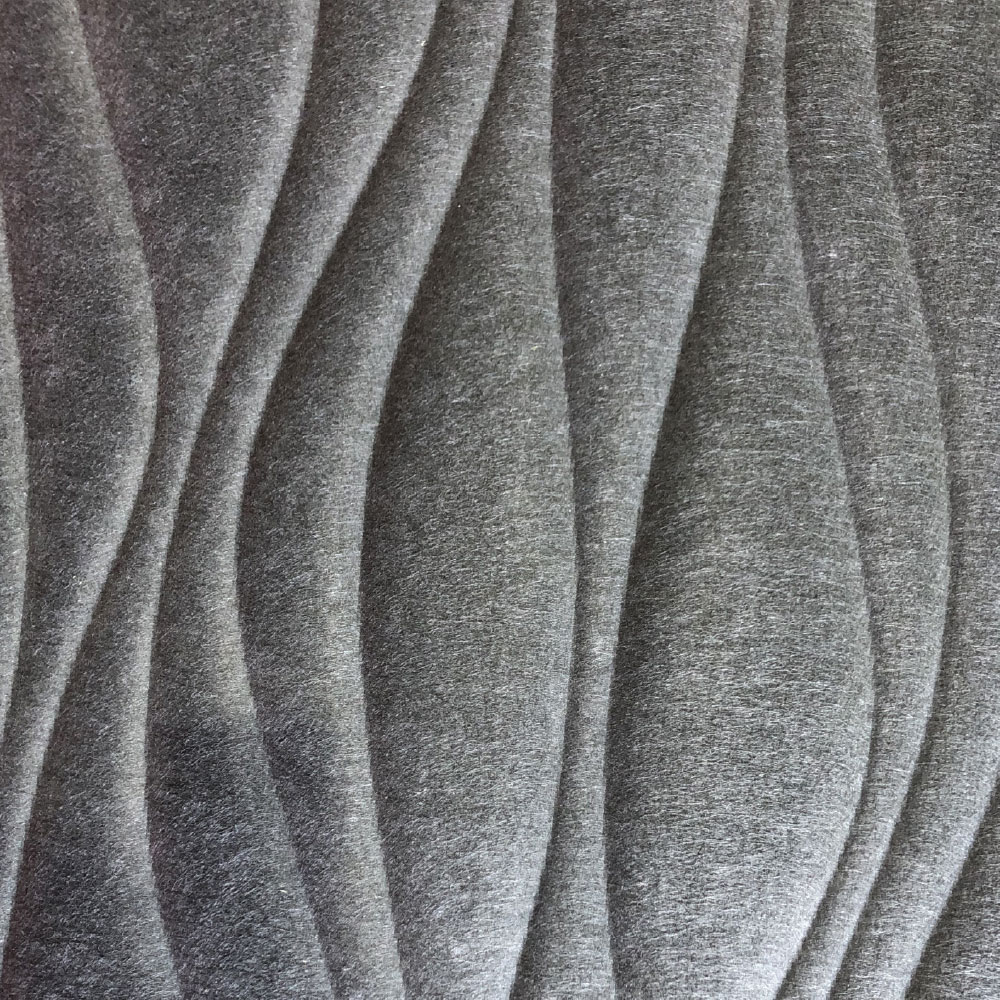

ECOCORE Embossed Panels

ECOCORE Embossed Panels introduce texture and sophistication through raised surface patterns. These PET panels acoustic solutions provide visual richness while helping reduce reverberation and noise levels.
Key Benefits:
1. Premium textured appearance
2. Improved interior aesthetics
3. Durable and long-lasting finish

ECOCORE PET Felt Acoustic Panels

Tranquil ECOCORE PET Felt Acoustic Panels offer a sustainable approach to modern acoustic treatment. Manufactured using high-quality polyester fibers, each polyester fibre acoustic panel delivers effective sound absorption while supporting environmentally conscious construction practices.

These panels are lightweight, durable, easy to install, and available in numerous colors and design configurations. Whether used as wall panels, partitions, screens, or decorative features, ECOCORE PET Felt Panels help create acoustically comfortable spaces without sacrificing design flexibility.

Advantages

Choosing Tranquil ECOCORE means investing in an acoustic solution that balances performance, sustainability, and design freedom.

Helps reduce echo and reverberation, creating quieter and more comfortable spaces.
Manufactured from 100% PET polyester fiber, making it an environmentally responsible choice.
Available in 148 colors to suit diverse interior design requirements.
Offered in multiple design options including printed, perforated, grooved, carved, and embossed finishes.
Lightweight construction enables easy handling and faster installation.
Customizable in terms of size, pattern, thickness, and design.
Contributes to healthier indoor environments with its non-toxic material composition.

Step-by-Step Installation Method of PET Acoustic Wall Panels

Installing PET Acoustic panels is a straightforward process that ensures long-lasting acoustic performance.

Step 1: Surface Preparation: Ensure the wall surface is clean, dry, and free from dust or debris.

Step 2: Measurement & Layout: Mark the panel positions accurately to achieve proper alignment and design consistency.

Step 3: Adhesive Application: Apply recommended adhesive evenly on the rear surface of the panel.

Step 4: Panel Placement: Position the panel carefully on the marked area and press firmly against the wall.

Step 5: Alignment Check Ensure panels are aligned correctly and maintain consistent spacing where required.

Step 6: Final Finishing: Inspect the installation and clean the surface for a seamless finished appearance.

For enhanced acoustic performance, panels may also be installed with an air gap where project specifications require additional sound absorption.

Frequently Asked Questions (FAQs)

Q1. What are PET acoustic panels made of?
Ans: PET acoustic panels are manufactured using 100% PET polyester fibers, making them durable, lightweight, and environmentally responsible.

Q2. Where can acoustic PET panels be installed?
Ans: Acoustic PET panels are suitable for offices, schools, conference rooms, auditoriums, restaurants, hospitality spaces, and commercial interiors.

Q3. How effective are PET acoustic panels in reducing noise?
Ans: They offer NRC ratings of up to 0.90, helping minimize echo, reverberation, and unwanted background noise.

Q4. Can PET acoustic panels be customized?
Ans: Yes. They are available in multiple thicknesses, colors, patterns, and custom designs including printed, perforated, grooved, carved, and embossed finishes.

Q5. Are PET acoustic panels environmentally friendly?
Ans: Yes. PET panels are manufactured using sustainable polyester fiber materials and support green building initiatives.

Q6.Are PET acoustic panels fire-rated?
Ans: Yes. ECOCORE panels are tested and certified under ASTM E-84 standards with Class A and Class B fire ratings..

Q7. How long do PET acoustic panels last?
Ans: With proper installation and maintenance, PET acoustic panels provide long-term acoustic performance and durability, backed by a 2-year manufacturing warranty.
